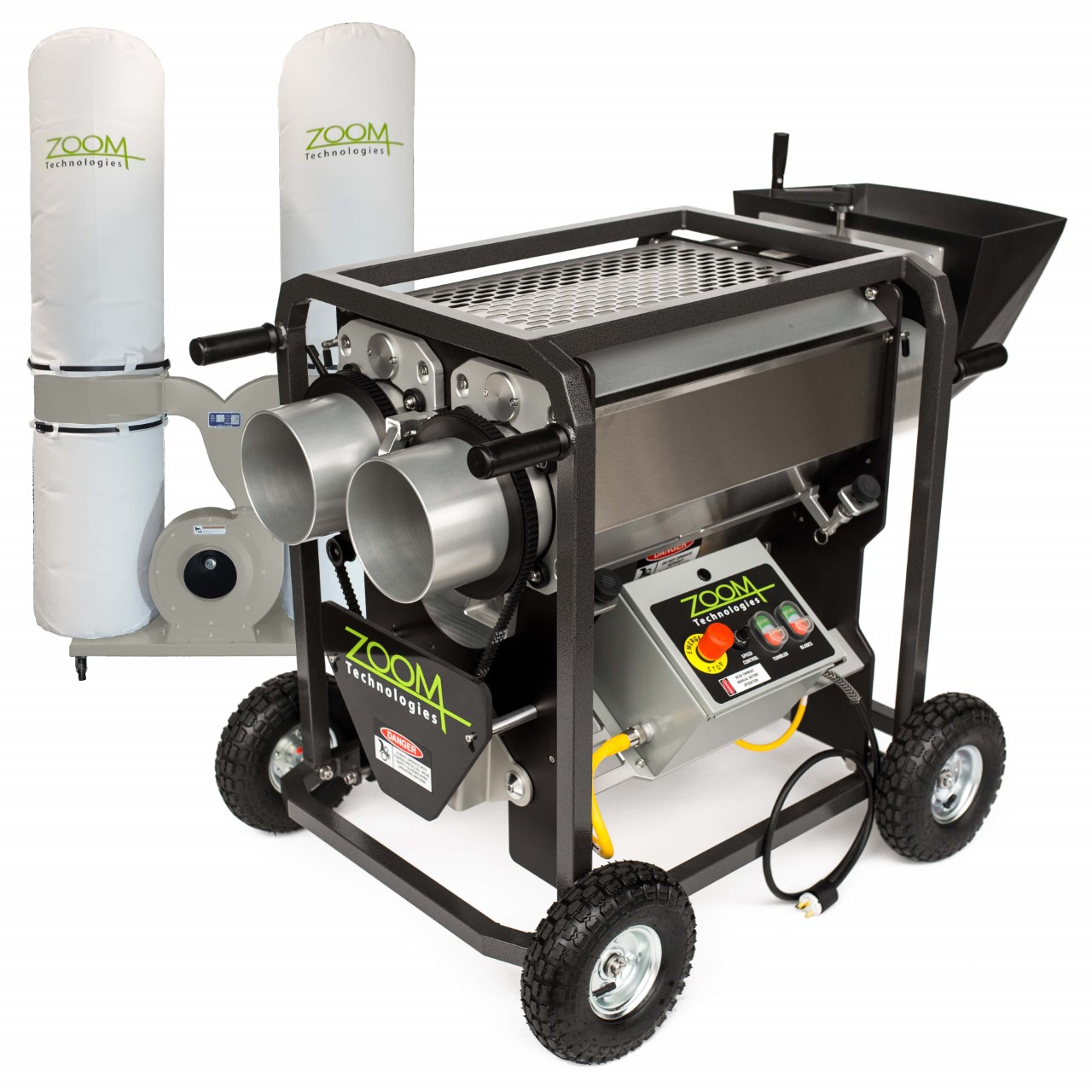

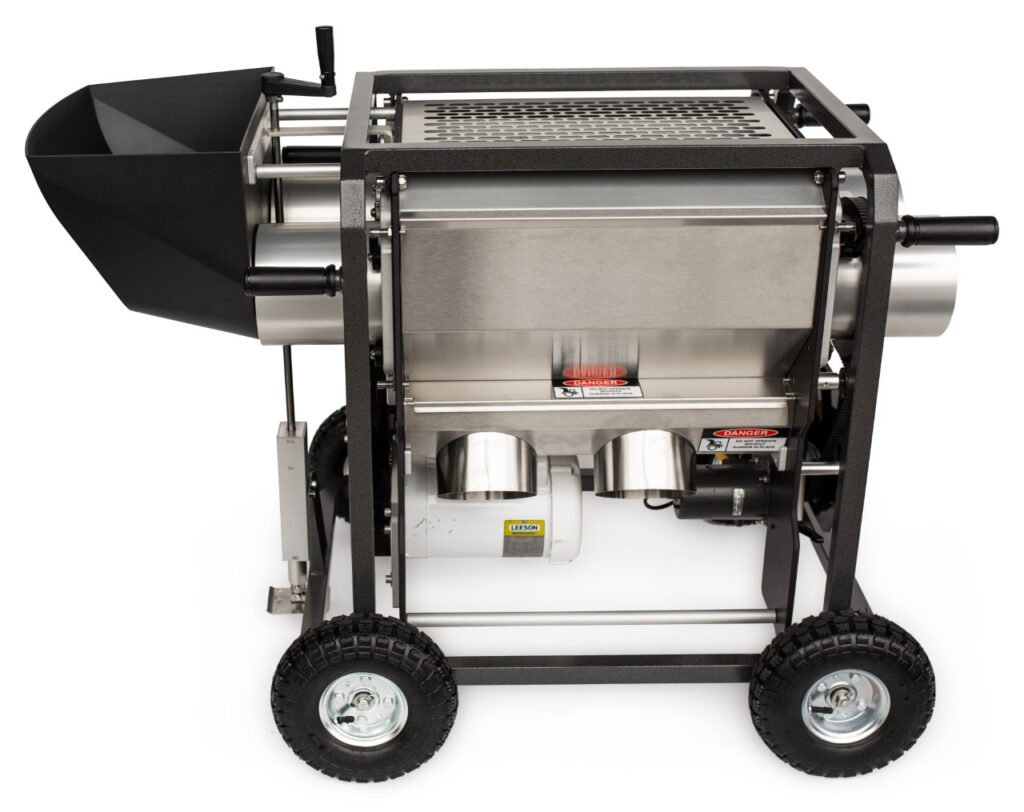

ZOOM PRO WITH LEAF COLLECTOR



$28,900.00



Made in USA

This trimmer is the perfect fit for the medium to large-scale commercial growers and processors. With its 220-240 volt input, this machine and powerful leaf collector system is geared for high performance and engineered to be reliable. With its 10” flat free wheels, Zoom Pro is easily transportable allowing for more flexibility on job sites.



Click links below for more info

” It was our first season with the Zoom Pros at Black Diamond Cannabis. They are amazing machines and have amazing customer service. Zoom is the way to go for sure, you can’t have too many! We couldn’t be happier with ZOOM trimmers and the Zoom team as well!! Positive vibes!! ” Black Diamond Cannabis

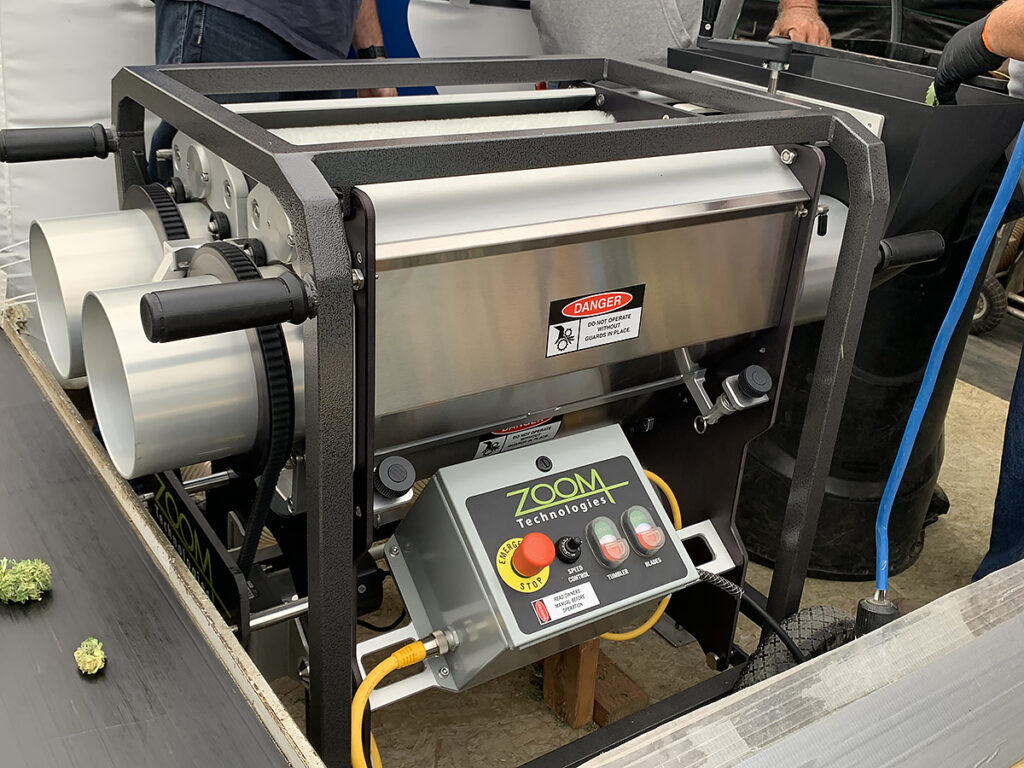

Zoom Pro Unit Throughput

Throughput





Up to 150 lbs wet material per hour



Up to 50 lbs dry material per hour

Zoom Pro Unit Throughput

Throughput





Up to 150 lbs wet material per hour



Up to 50 lbs dry material per hour

Wet & Dry Trim – Variable Speed



Hybrid Tumblers are used for trimming wet and large dry flowers.



Narrow Slots Tumblers are designed to trim small fragile dry flowers.



Patented angular barrel slots with adjustable barrel speed 0-180



Zoom Pro can gently tumble different materials

Wet & Dry Trim – Variable Speed



Hybrid Tumblers are used for trimming wet and large dry flowers.



Narrow Slots Tumblers are designed to trim small fragile dry flowers.



Patented angular barrel slots with adjustable barrel speed 0-180



Zoom Pro can gently tumble different materials

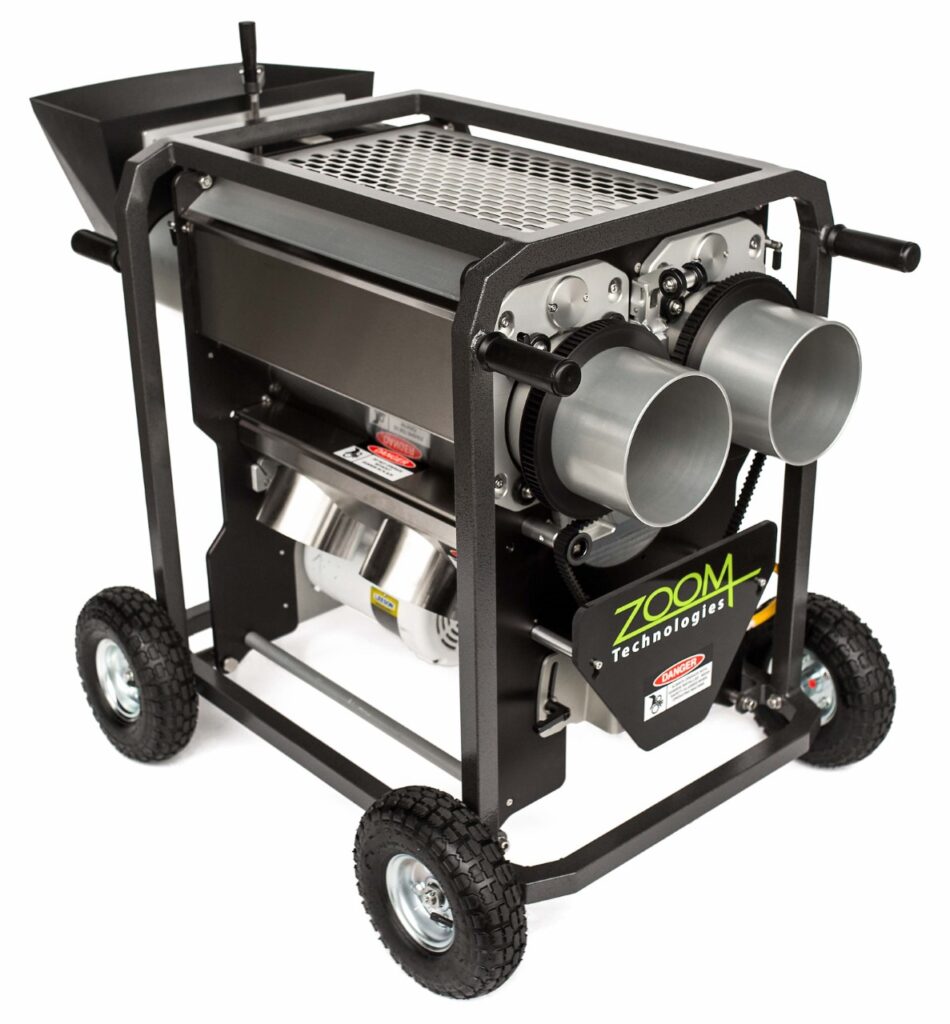

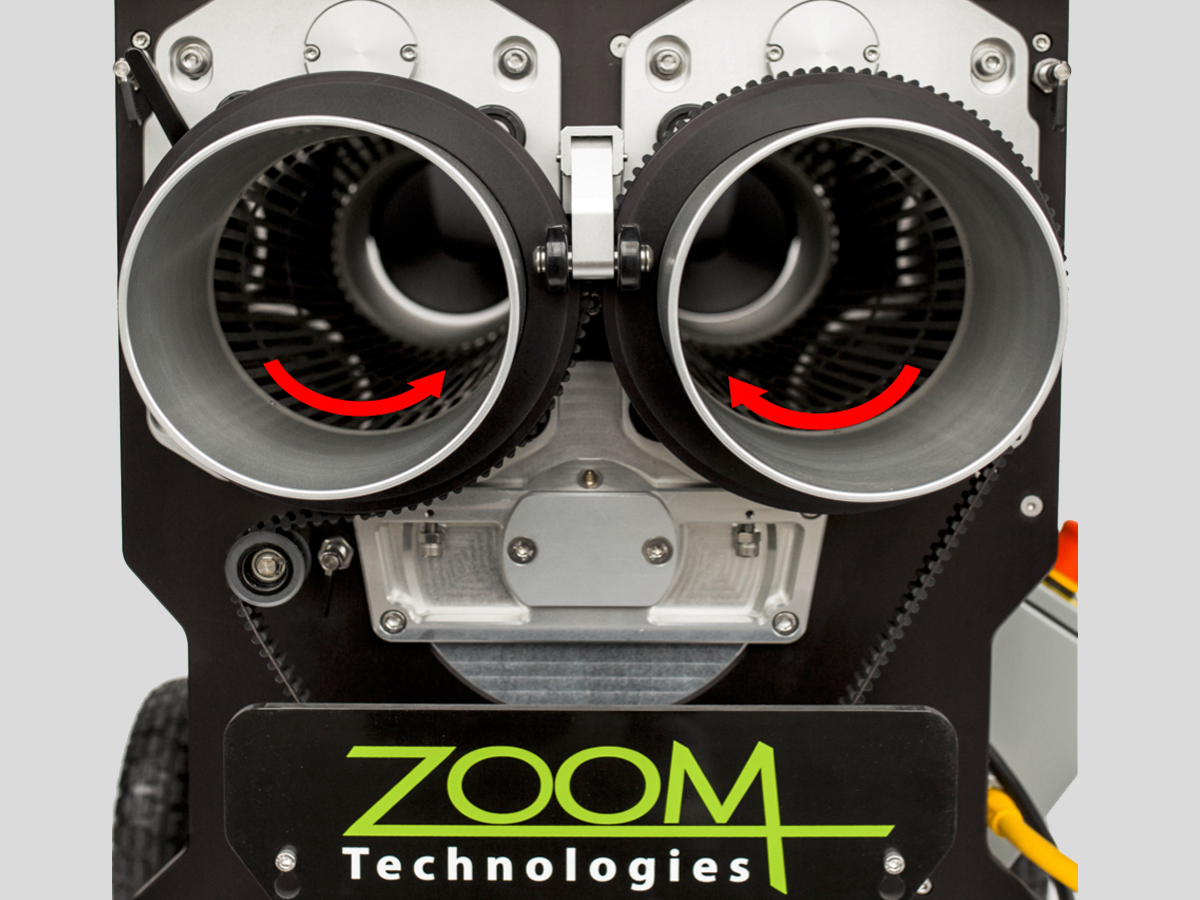

Counter-Rotate Barrel System



Take a close look at the Barrel rotation and you can understand how they work with the reel cutter. Plant material is naturally tumbling into the cutting zone for the best results.



The Right Barrel rotates clockwise, while the Left Barrel rotates counter-clockwise. The Barrels counter rotation causes the material to naturally roll into the cutting zone over the reel cutter.



With this rotation, only ONE Reel Blade is required for both Barrels. The reel cutter is positioned at the precise position for the best cutting action on both barrels.



Our machines are all designed to use this natural tumbling force to get the best trim possible.

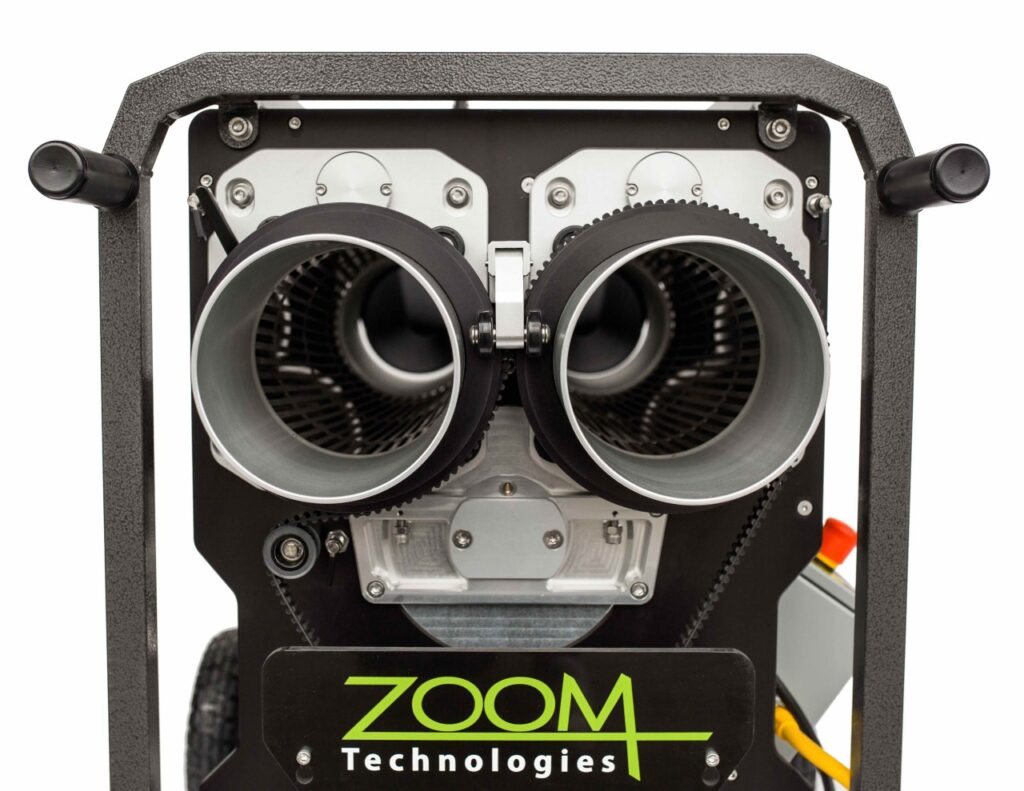

Zoom Pro Unit Counter-Rotate Barrel System
Zoom Pro Unit Counter-Rotate Barrel System

Counter-Rotate Barrel System



Take a close look at the Barrel rotation and you can understand how they work with the reel cutter. Plant material is naturally tumbling into the cutting zone for the best results.



The Right Barrel rotates clockwise, while the Left Barrel rotates counter-clockwise. The Barrels counter rotation causes the material to naturally roll into the cutting zone over the reel cutter.



With this rotation, only ONE Reel Blade is required for both Barrels. The reel cutter is positioned at the precise position for the best cutting action on both barrels.



Our machines are all designed to use this natural tumbling force to get the best trim possible.

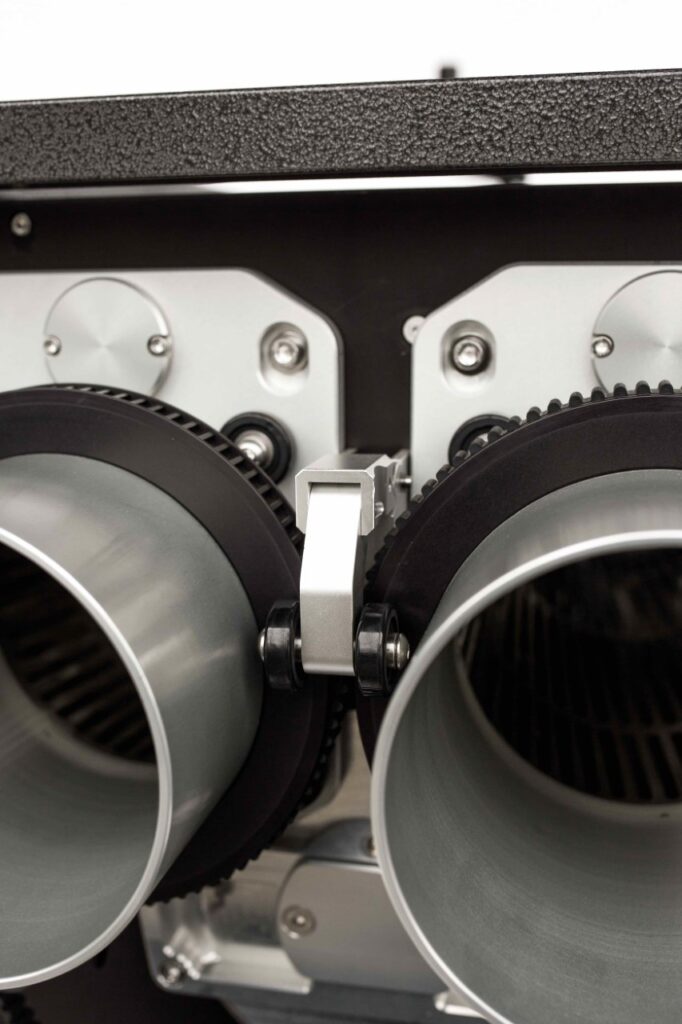

Quick Release Barrel Bearing Unit



With the Barrel Guide system, you can simply lock and unlock the barrels with one hand. To unlock you simply pull and lift the bearing arm. To lock you simply push the arm down and the lock retracts automatically locking the barrels in place.

Quick Release Barrel Bearing Unit



With the Barrel Guide system, you can simply lock and unlock the barrels with one hand. To unlock you simply pull and lift the bearing arm. To lock you simply push the arm down and the lock retracts automatically locking the barrels in place.

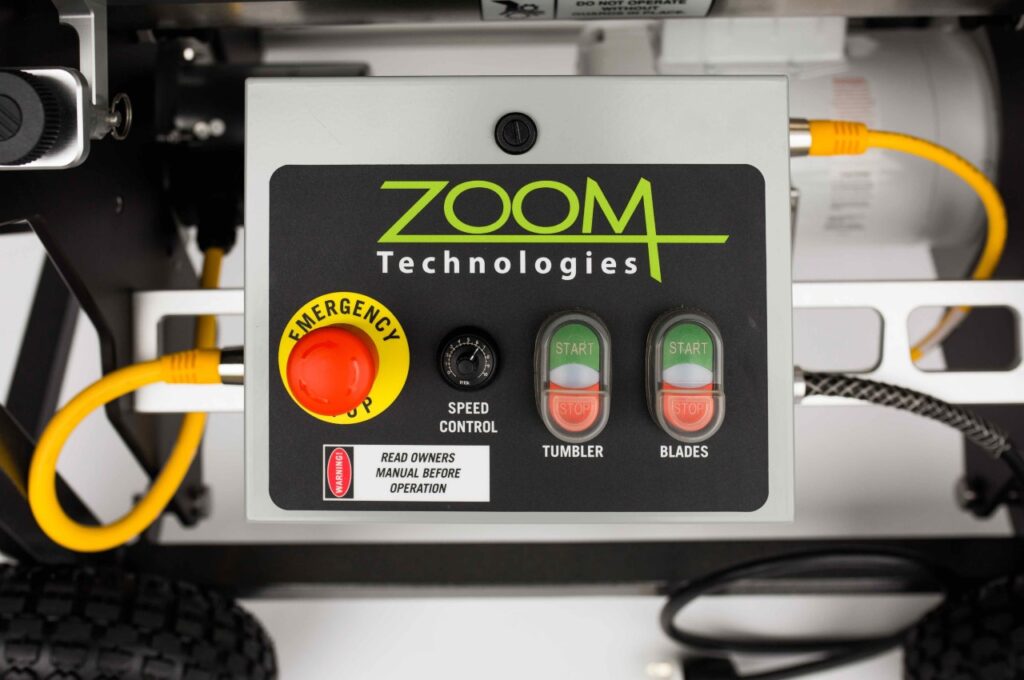

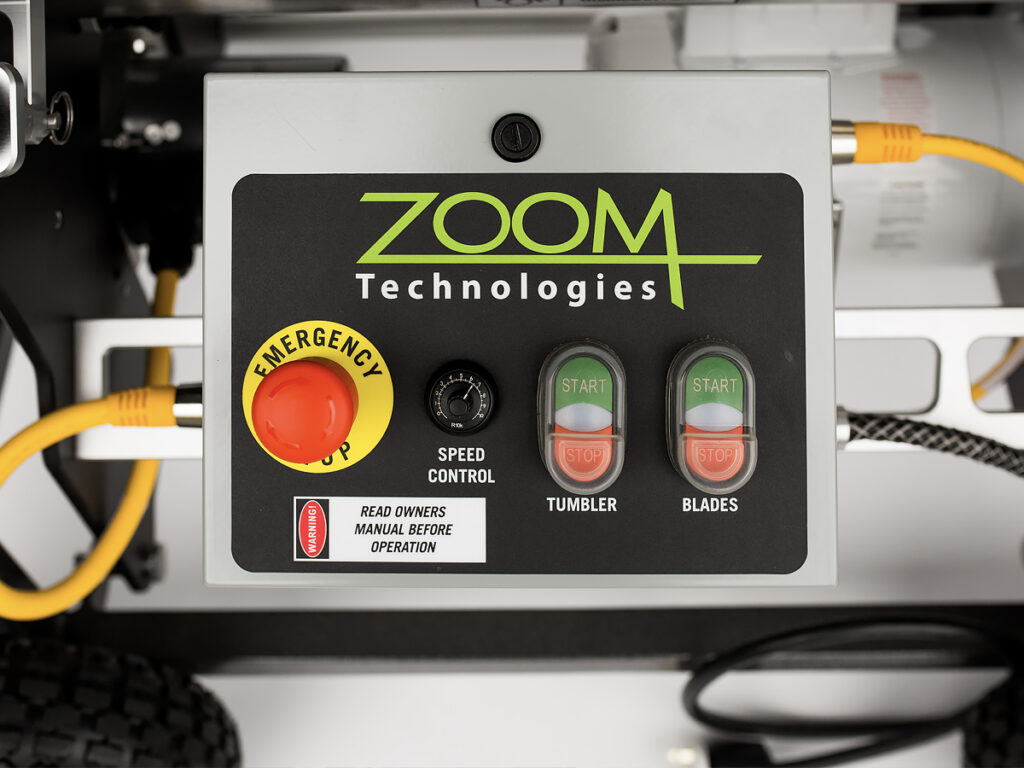

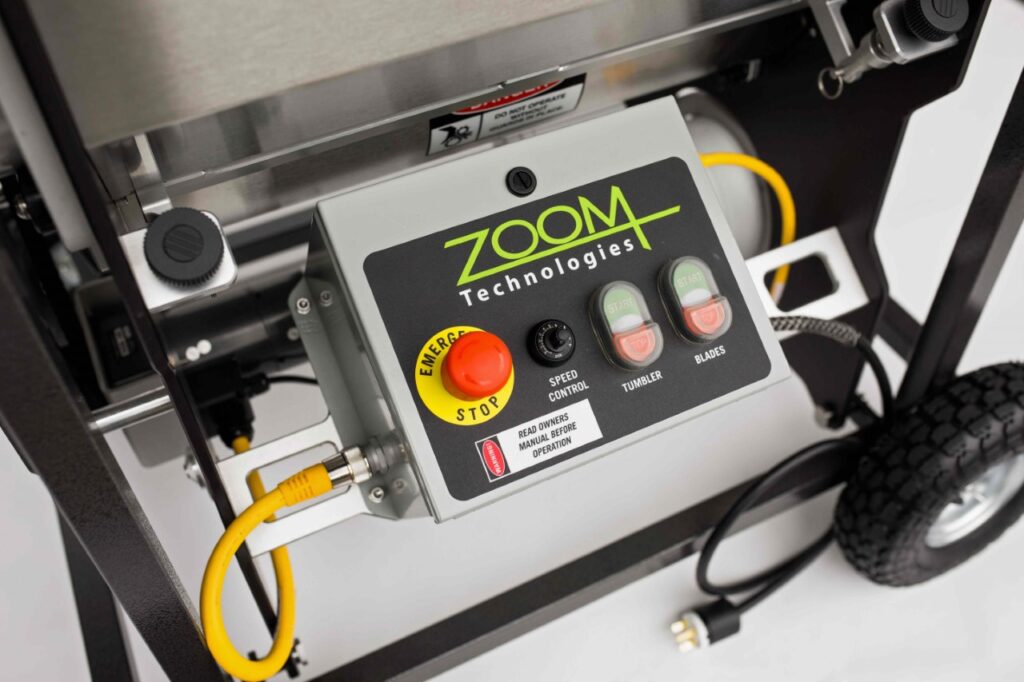

Modularized Control Box with Tumbler Speed Control



Heavy duty UL listed control box with modular construction

and fully sealed IP67.

Zoom Pro Unit Modularized Control Box
Zoom Pro Unit Modularized Control Box

Modularized Control Box with Tumbler Speed Control



Heavy duty UL listed control box with modular construction

and fully sealed IP67.

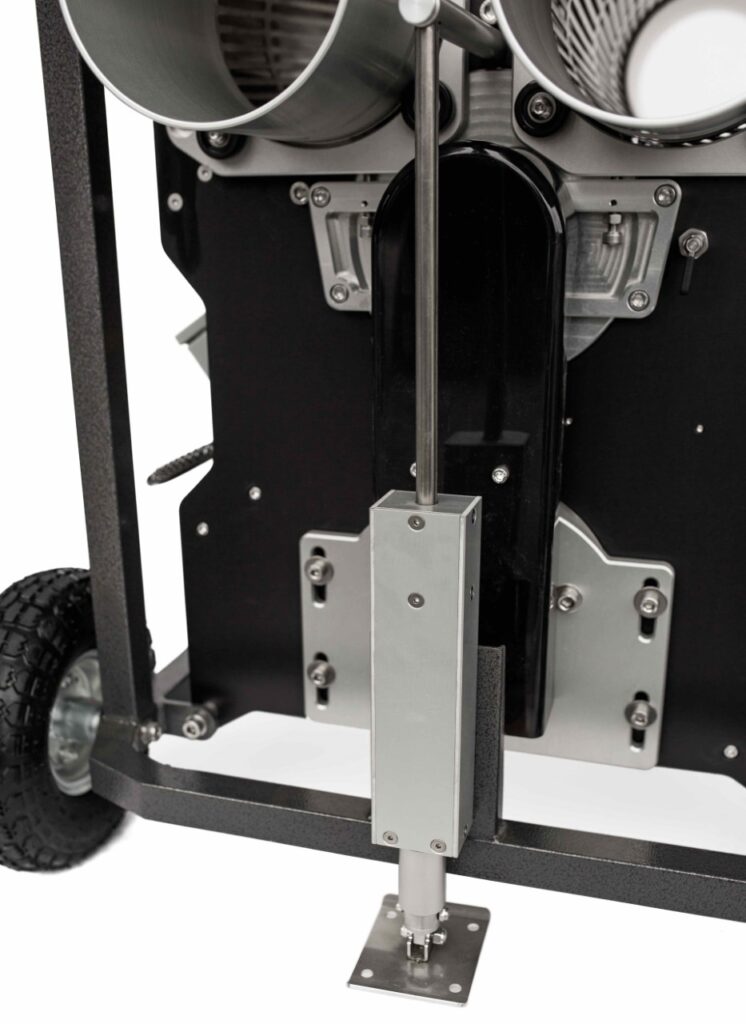

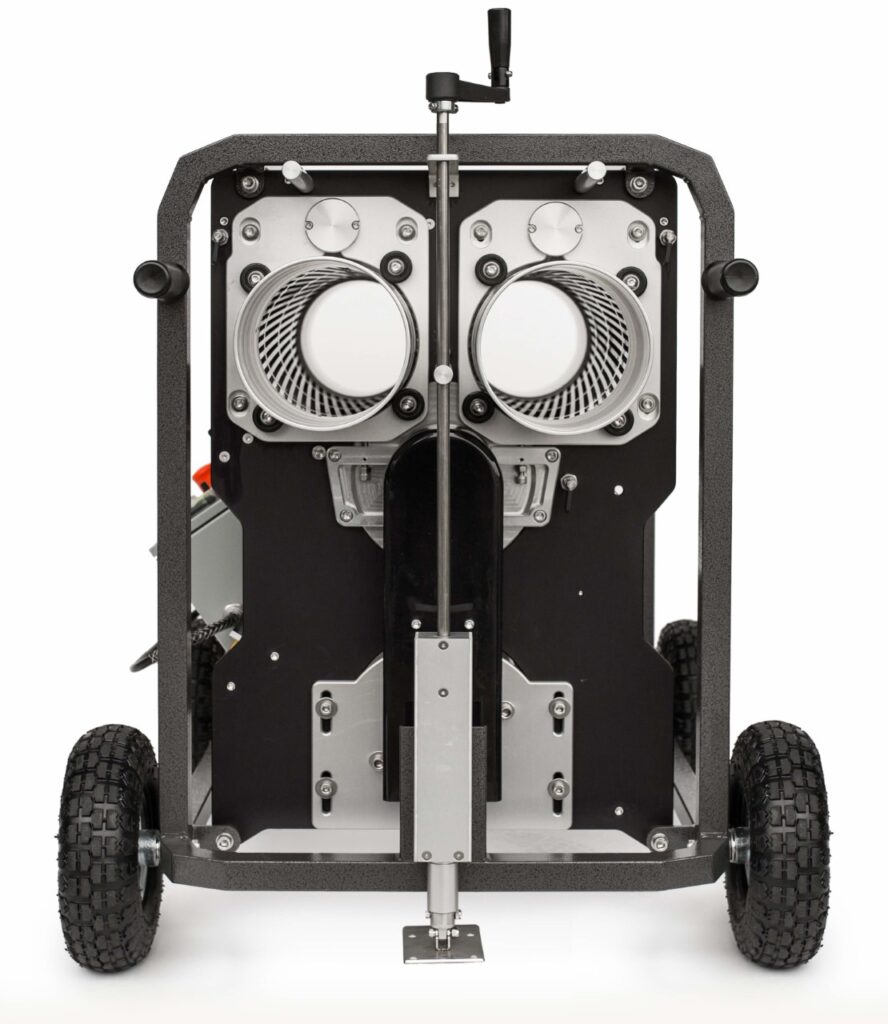

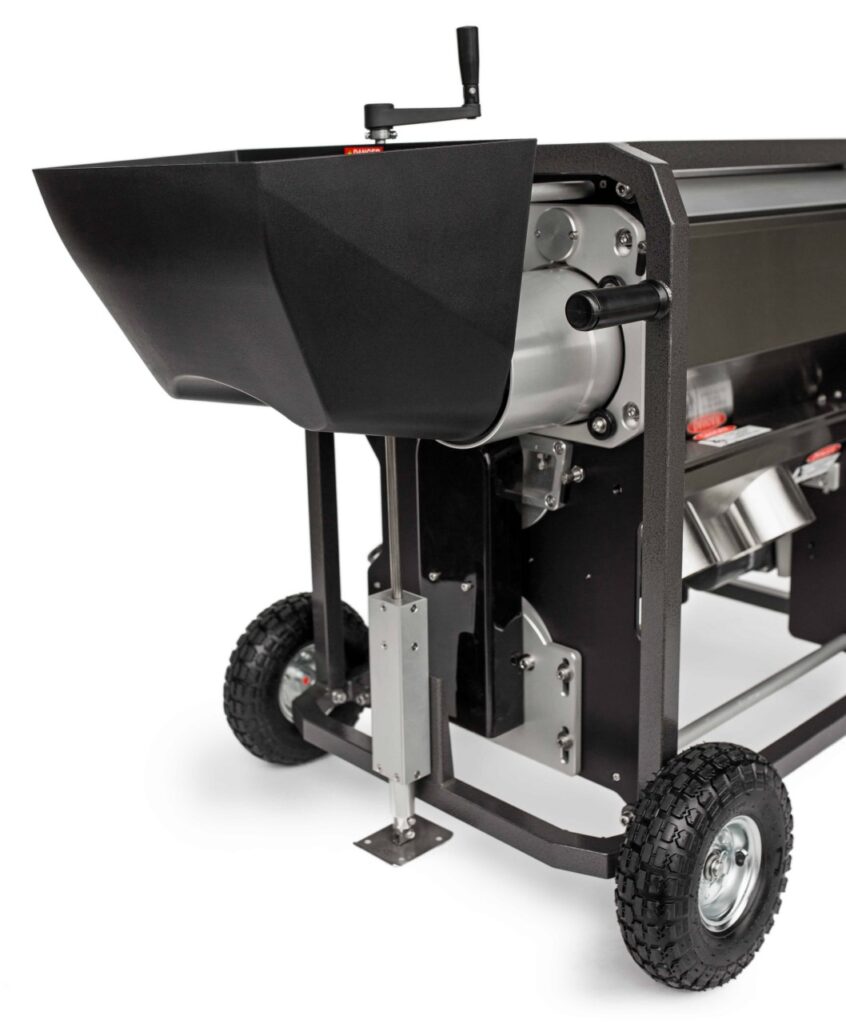

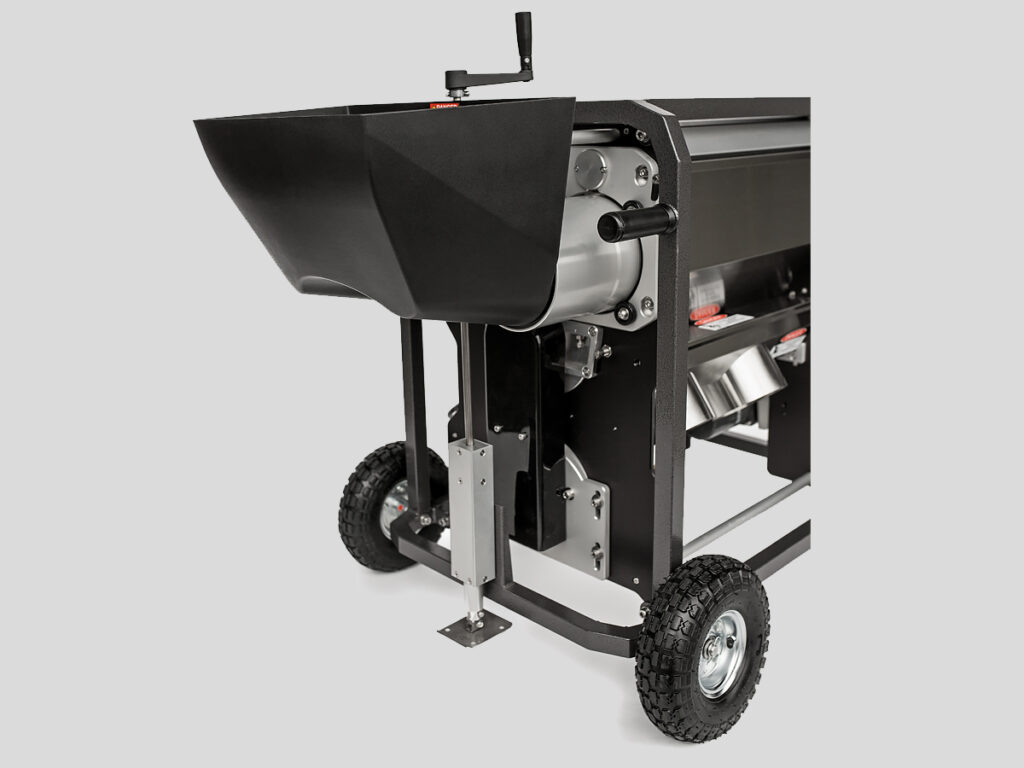

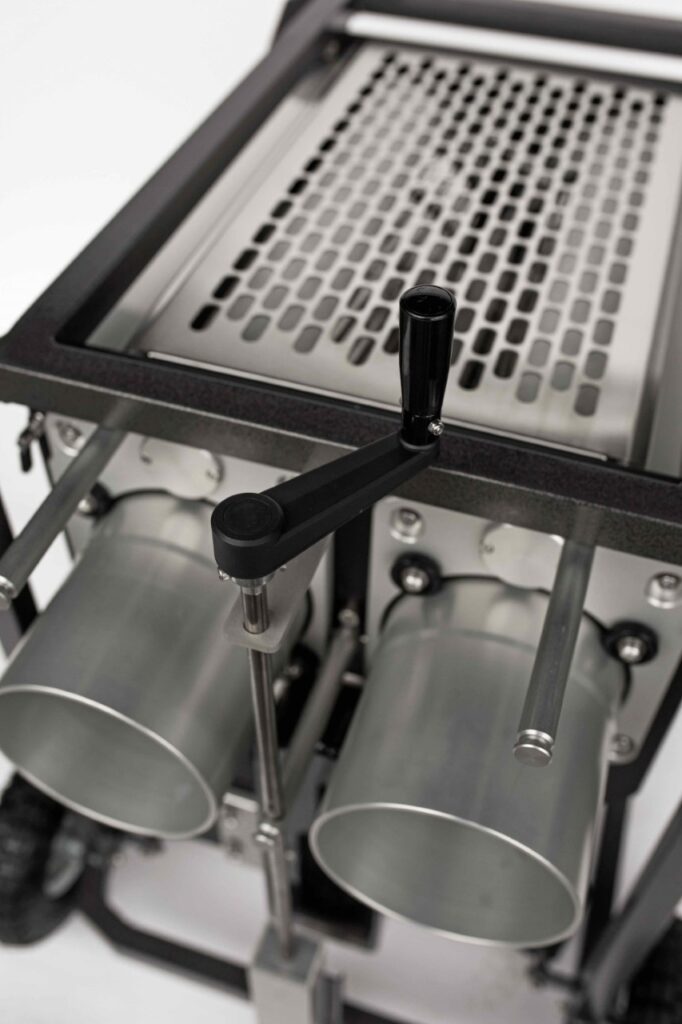

Zoom Pro Unit Jack

Jack



Heavy duty built-in centered jack for adjustable tilt angle. Raise it up to send product through faster or drop it down for a tighter QC tolerance.

Zoom Pro Unit Jack

Jack



Heavy duty built-in centered jack for adjustable tilt angle. Raise it up to send product through faster or drop it down for a tighter QC tolerance.

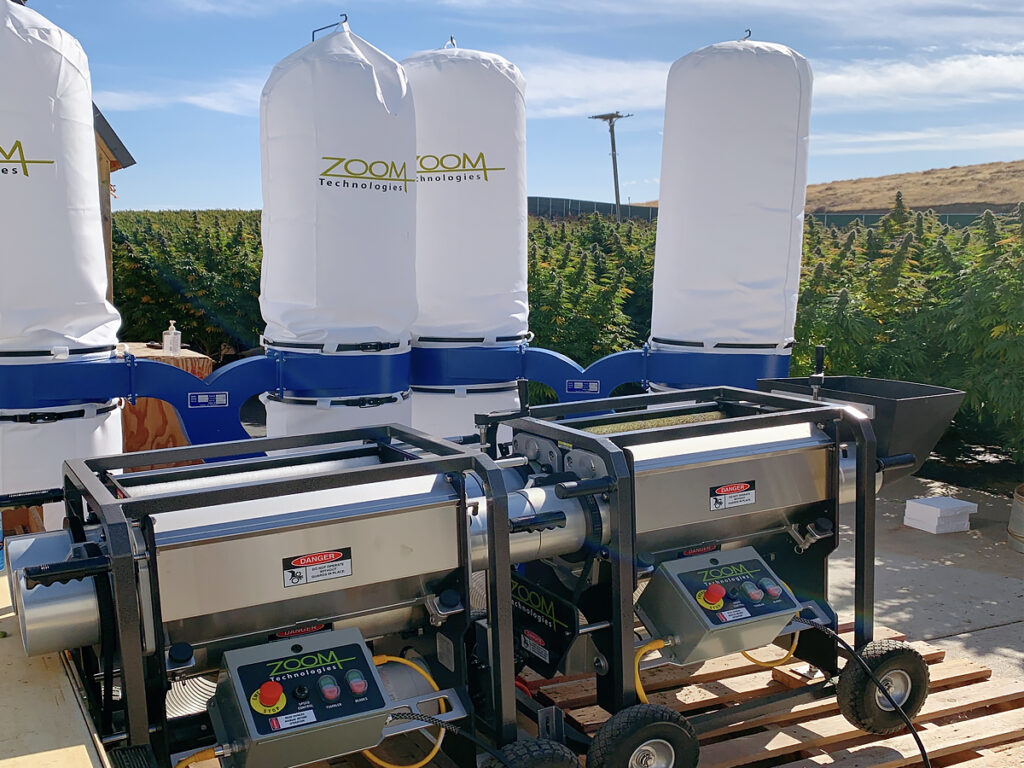

Tandem Ready



Run tandem to get a top-quality cut and increase the production capacity. ZOOM Pro is tandem ready. Linking two ZOOM Pro in tandem increases the feed rate and provides a better quality trimmed flower.

Tandem Zoom Pro Units
Tandem Zoom Pro Units
  • One Zoom Pro Unit

    • Wet Trim : 100-150 lbs/hr

    • Dry Trim : 40-50 lbs/hr

  • Two Zoom Pro Units

    • Wet Trim : 200-300 lbs/hr

    • Dry Trim : 80-100 lbs/hr

Tandem Ready



Run tandem to get a top-quality cut and increase the production capacity. ZOOM Pro is tandem ready. Linking two ZOOM Pro in tandem increases the feed rate and provides a better quality trimmed flower.

  • One Zoom Pro Unit

    • Wet Trim : 100-150 lbs/hr

    • Dry Trim : 40-50 lbs/hr

  • Two Zoom Pro Units

    • Wet Trim : 200-300 lbs/hr

    • Dry Trim : 80-100 lbs/hr

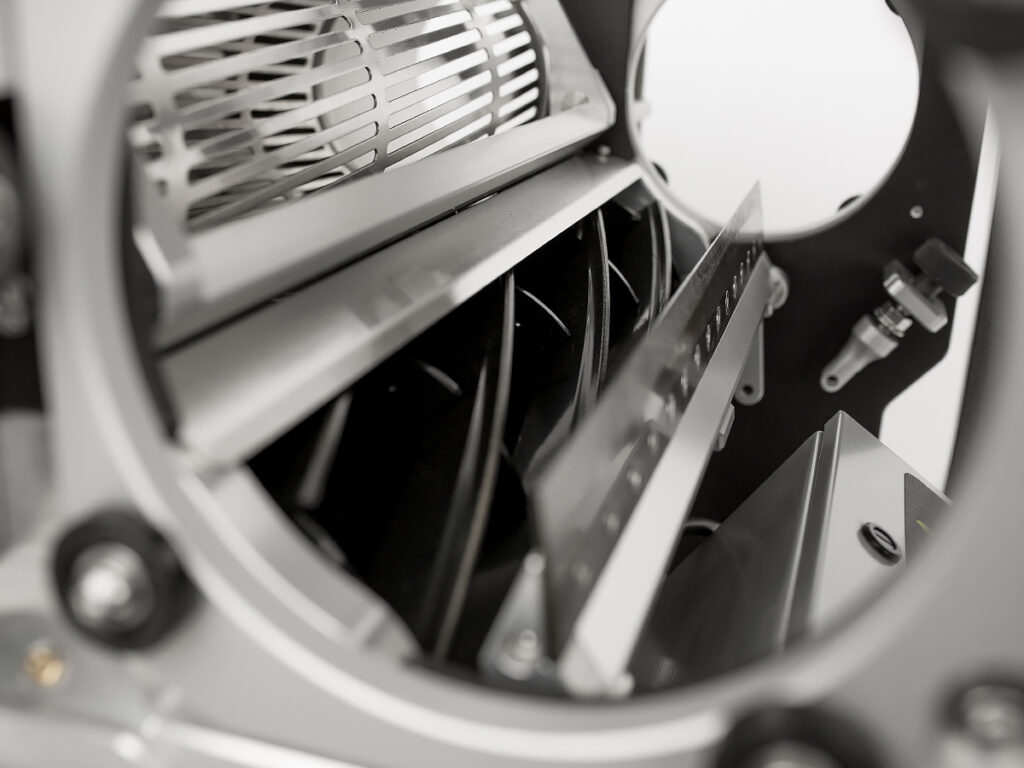

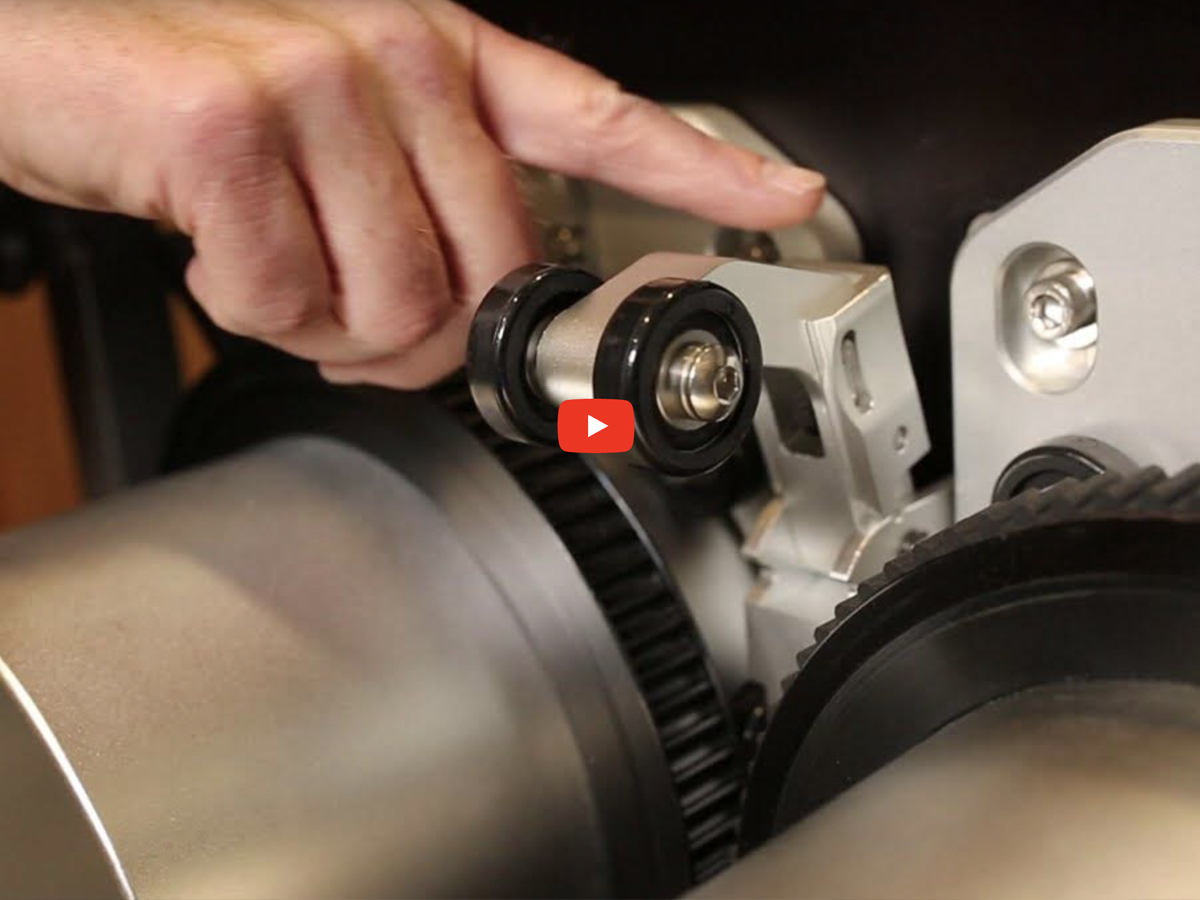

Zoom Pro Unit Easy Maintenance

Low maintenance.

Easy to clean.



It is very easy and simple to disassemble ZOOM Pro. No tools are required. The stationary blades swing up to make it easy to clean underneath.

Zoom Pro Unit Easy Maintenance

Low maintenance.

Easy to clean.



It is very easy and simple to disassemble ZOOM Pro. No tools are required. The stationary blades swing up to make it easy to clean underneath.

TECH SPECS

TECH SPECS

ZOOM PRO TRIMMER

LEAF COLLECTOR UNIT

Power requirements

Current Draw

Speed Control

GFCI Compatible

Generator Compatible

Electrical Cord Length

Control Box Ratings

Reel Motor

Reel Motor Rating

Tumbler Motor

Connector (plug)

Machine Jack

Machine Width

Warranty

220-240V

10A

0-180 RPM

NO

YES

6’

NEMA 4/12

1.5HP

Washdown

60W

15Amp-NEMA 6-15P

6” Travel

31”

5 YEARS

Power requirements

Current Draw

Startup Amps

GFCI Compatible

Generator Compatible

Electrical Cord Length

Motor

Airflow Unrestricted

Bag Columns

Impellor Size

Sound Rating

Fused

Connector (plug)

Circuit Breaker Required

Warranty

220-240V

8A

26A

NO

YES

5’

3HP

2800CFM

2

14”

70-80db

YES

15Amp-NEMA 6-15P

20A-240V

2 YEARS

Zoom Pro Trimmer

  • Power requirements: 220-240V
  • Current Draw: 10A
  • Speed Control: 0-180 RPM
  • GFCI Compatible: NO
  • Generator Compatible: YES
  • Electrical Cord Length 6’
  • Control Box Ratings: NEMA 4/12
  • Reel Motor: 1.5HP
  • Reel Motor Rating: Washdown
  • Tumbler Motor: 60W
  • Connector (plug): 15Amp-NEMA 6-15P
  • Machine Jack: 6” Travel
  • Machine Width: 31”
  • Warranty: 5 YEARS



Leaf Collector Unit

  • Power requirements: 220-240V
  • Current Draw: 8A
  • Startup Amps: 26A
  • GFCI Compatible: NO
  • Generator Compatible: YES
  • Electrical Cord Length: 5’
  • Motor: 3HP
  • Airflow Unrestricted: 2800CFM
  • Bag Columns: 2
  • Impellor Size: 14”
  • Sound Rating: 70-80db
  • Fused: YES
  • Connector (plug): 15Amp-NEMA 6-15P
  • Circuit Breaker Required: 20A-240V
  • Warranty: 2 YEARS



Zoom Pro Trimmer Shipping Crate Dimensions

  • Height: 62”
  • Width: 46”
  • Depth: 31”
  • Weight: 450 lbs



Leaf Collector Shipping Crate Dimensions

  • Height: 22”
  • Width: 46”
  • Depth: 22”
  • Weight: 160 lbs

Zoom Pro Trimmer Shipping Crate Dimensions

Leaf Collector Shipping Crate Dimensions

Height

Width

Depth

Weight

62”

46”

31”

450 lbs

Height

Width

Depth

Weight

22”

46”

22”

160 lbs

ZOOM PRO FEATURES

ZOOM PRO FEATURES

Wet / Dry Capable

Throughput Hydrated

Throughput Dry

Optionable Narrow Slot Barrels

Variable Speed Control

Safety Off Switch

Conveyor Compatible

Indoor / Outdoor Use (vac covered)

Duty Cycle

Patented Spiral Slot Tumblers

Gentle Tumbling Design

Washdown Reel Blades

Washdown Reel Motor

Washdown Electronics

GMP Compliant

304 Stainless Steel Components

Brushes

Power Coatings

Detachable Hopper

Nitride Hardened Blades

Heavy Duty Jack

Tandem Capable

Heavy Duty 3HP Vacuum

Swing Blade Technologies

YES

150 lbs/hr

50 lbs/hr

YES

YES

YES

YES

YES

Continuous

YES

YES

YES

YES

YES

YES

FDA Food Grade

6/6 Nylon Food Grade

FDA Food Grade

YES

YES

YES

YES

YES

YES

  • Wet / Dry Capable: YES
  • Throughput Hydrated: 150 lbs/hr
  • Throughput Dry: 50 lbs/hr
  • Optionable Narrow Slot Barrels: YES
  • Variable Speed Control: YES
  • Safety Off Switch: YES
  • Conveyor Compatible: YES
  • Indoor / Outdoor Use (vac covered): YES
  • Duty Cycle: Continuous
  • Patented Spiral Slot Tumblers: YES
  • Gentle Tumbling Design: YES
  • Washdown Reel Blades: YES
  • Washdown Reel Motor: YES
  • Washdown Electronics: YES
  • GMP Compliant: YES
  • 304 Stainless Steel Components: FDA Food Grade
  • Brushes: 6/6 Nylon Food Grade
  • Power Coatings: FDA Food Grade
  • Detachable Hopper: YES
  • Nitride Hardened Blades: YES
  • Heavy Duty Jack: YES
  • Tandem Capable: YES
  • Heavy Duty 3HP Vacuum: YES
  • Swing Blade Technologies: YES
