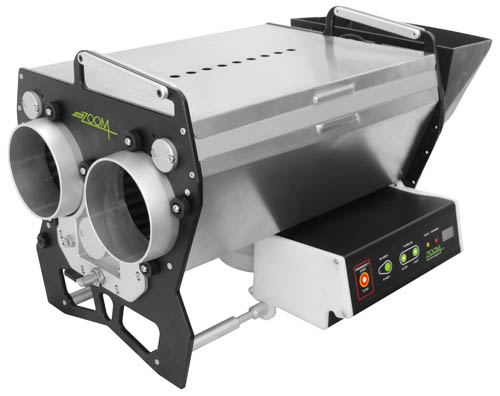

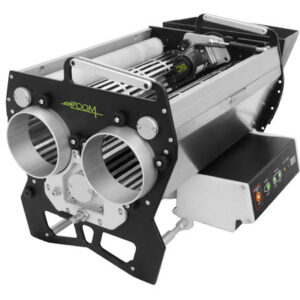

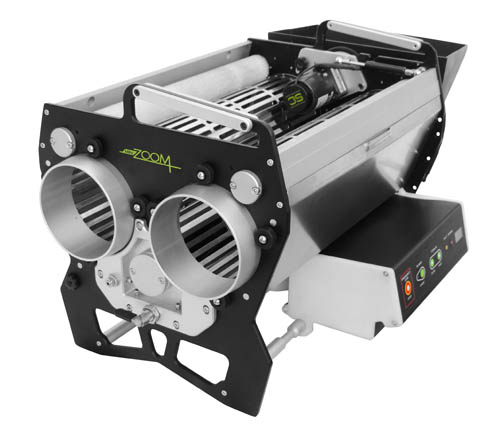

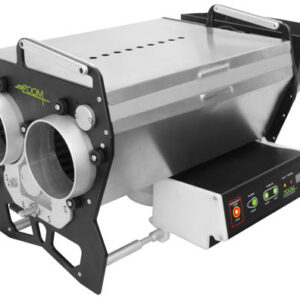

Mini Zoom


  • Trims more than big single barrel machines
  • Wet or dry trimming with gentle tumbling

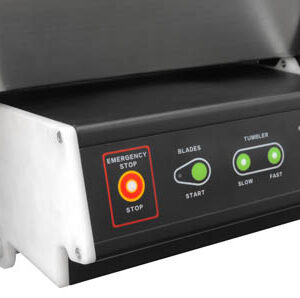

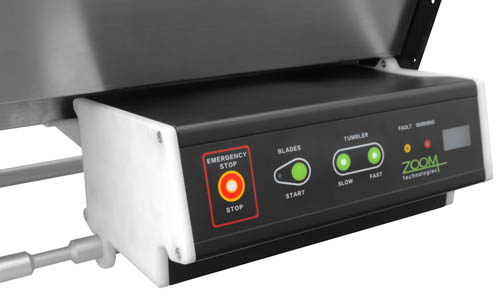

  • Smart control logics with speed and hour clock
  • Variable barrel speed range
  • Adjustable vacuum control for delicate material
  • All 110/120v system
  • 1 year warranty

Out of stock


The Smart Mini Zoom uses a patented trimming technology that gives you the most bang for your buck.  It is designed to be extremely affordable but can still outperform larger machines.  Therefore, you get increased efficiencies in your output with its 110/120 volt system including vacuum, at a cost-effective price.  With our revolutionary Parallel Double Barrel Technology, you can actually double your ROI while owning a reliable, lightweight portable product that is easy to set up and use.

Mini Zoom (Dry or Wet Barrels Option)

Model: DB3200




Wet – 20lbs per hour

Dry – 10lbs per hour



Mini ZOOM Specs:

Input voltage 110/120v
Current draw 8A
Reel blade motor 200W / .25HP
Barrel motor 12W / 1/250HP
Weight 58lbs / 26.5kg
Length 25.5” / 64.8cm
Width 17” / 43.2cm
Height 17” / 43.2cm

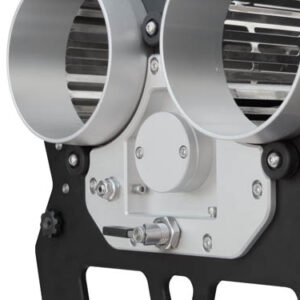

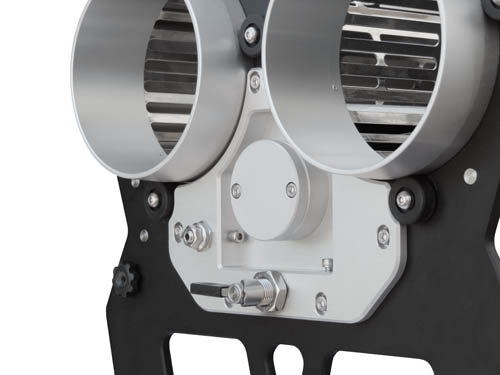

Discharge diameters 6” / 15.2cm

Mini ZOOM Vacuum Specs:

Voltage 110/120v
Motor 750W / 1HP
Amperage 10A
Motor speed 3450 RPM
Airflow 1190 CFM
Impeller size 10″ / 25.4cm
Inlet size 6″ / 15.2cm
Height 18″ / 45.7cm
Weight 64lbs / 29kg
Circuit breaker required 15A
Plug 15A 120v NEMA 5-15

Additional Requirements:

Extension cord 12/3 AWG (min AWG)

25ft/7.7m (max length)
